A4-80 is a high-tensile stainless steel that is in common use in the Petro-chemical, Oil & Gas and Offshore Industries. It has great mechanical strength in addition to good resistance to corrosion. Higher mechanical strength as compared to standard A4 / 316 is achieved through the cold-drawing process, providing a minimum Ultimate Tensile Strength of 800 MPa.

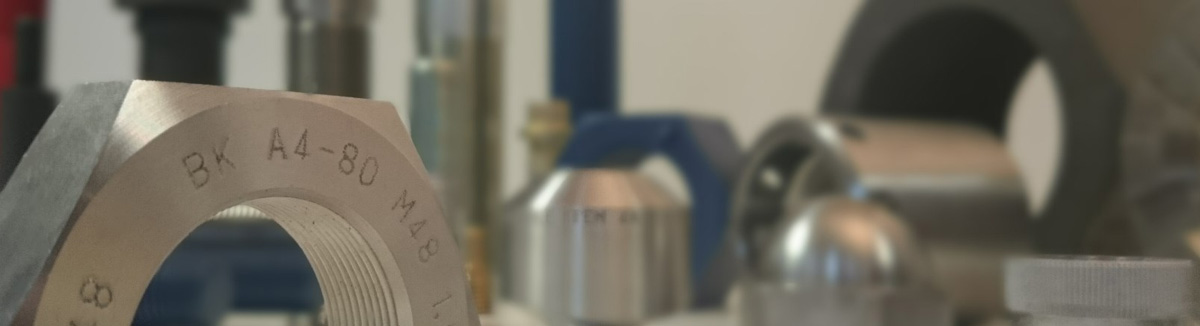

At Bolt King, we are adept at manufacturing A4-80 fasteners, and are able to hot-forge A4-80 bolts and nuts on-site. By using cold-worked raw material with tensile strengths in excess of 1000 MPa, we can retain the A4-80 properties even after the forging process. Our current range for hot-forging these products is M6 - M48.
If you have any questions or queries with regard to A4-80 bolting, please contact us.
Chemical Properties
|
| C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu | W | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Min |
- | - | - | - | - | 16.0 | 10.5 | 2.0 | - | - | - | - |
| Max | 0.08 | 2.0 | 0.03 | 0.045 | 1.0 | 18.5 | 14.0 | 3.0 | - | - | - | Bal |
Mechanical Properties
| Ultimate Tensile Strength (Min) | Yield Strength (Min) | Elongation (Min) | RoA (Min) | Hardness |
|---|---|---|---|---|
| 800 MPa | 600 MPa | 30 | - | - |
The information provided above is for reference only. Please contact us for further information.
